Design, Test & Measurement Lab

Exclusive and sophisticated premise for functional design and testing of electronic system with the aid of measurements

py2-01_edited_edited 1.png

Equipment Clusters

Oscilloscope

It is used to graphically displays electrical signals and shows how those signals change over time.

Multimeter

A measuring instrument that can measure multiple electrical properties like voltage, resistance, and current.

power supply.jpg
Power Supply

Power up both the analog circuitry and the digital circuitry of a printed circuit board or a complete device

power analyser.jpg
Power Analyser

Ideal for making precision power measurements on single-phase power supplies and all types of products connected to the AC line.

RF Generator.jpg
RF Vector Generator

Operate as arbitrary waveform generators for baseband signal generation or accept the AWG/AFG signals as inputs.

electronic load.jpg
Electronic Load

Tests power sources by emulating a device under test

vector network.jpg
Vector Network Analyser

Used to test component specifications and verify design simulations to make sure systems and their components work properly together

Source measurement.jpg
Source Measurement Unit

Combines a sourcing function and a measurement function on the same pin or connector.

battery simulator.jpg
Battery Simulator

To simulate batteries of any type, voltage and capacity.

Supporting Software

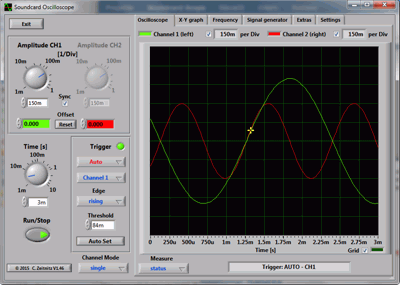

Analyze waveforms just as you would on your scope, without the need for the scope. Work anytime, anywhere

function generator.jpg
Function Generator

Electronic test instrument used to generate and deliver standard waveforms, typically sine and square waves, to a device under test

spectrum analyser.jpg
Spectrum Analyser

To measure the power of the spectrum of known and unknown signals.

List of Equipments

Filter Tags:

MSO Oscilloscope -3 Accessory -1

Protocol Decoder - USB serial triggering and analysis (USB 2.0 LS: FS: HS)

Oscilloscope
MSO Oscilloscope -3 Accessory -2

8 channel general purpose logic probe for MSO oscilloscopes

Oscilloscope
Oscilloscope 4 - Isolated

Type: Digital Storage Oscilloscope
Analog Bandwidth : 100MHz
Sample rate : 1 GS/s on all channels
Record Length : 2.5K points
Analog channels : 4
Float Voltage: 600 Vrms
No of swappable battery :2
Setup storage:4000 front panel setups
Rackmount Kit India
Power Cord

Oscilloscope
Isolated Oscilloscope -4 Software Package -1

Application Module: Power Measurement and Analysis Software
High Voltage Probe: 200 MHz: 100X: 1 kVRMS CAT II: Single-ended: BNC: - Qty #4

Oscilloscope
Isolated Oscilloscope -4 Current Probe -1

Type : High-Current Passive Probe
Current Type : AC/DC
Frequency : 100 kHz
Current rating : 10 mA to 100 A
Connector type : BNC

Oscilloscope
Mixed signal oscilloscope

Type : Mixed Signal Oscilloscope
Number of Channels: 6 Analog Channels
Analog Bandwidth : 350 MHz
Sample rate Real time: 3 GS/s or better
Record Length : 30M Mpoints; upgrade should be available
Vertical resolution: 12 bits or better, 16 Bits with High Resolution mode
Real Time Waveform Capture Rate: 450,000 wfm/sec or better
Acquisition Modes: Sample, Average, Envelope, High Resolution
DDC based Spectrum Analysis on all channels simultaneously.
DDC & Time Domain data should be able to visualize and analyzed simultaneously.
Span: 100Hz to 300MHz
Input Channel : 500uV/div minimum scale settings should be available.
No of Math function: 32 or better
Simultaneous Measurement: 32 or better
Frequency counter: 8 digit
Display:13 inch capacitive touch
Operating System: Closed Linux (No Windows)
Offline Analysis Software should be available.
500MHz passive probe per channel with 4pF probe loading capacitance

Oscilloscope
MSO Oscilloscope -5 Hardware upgrade -1

Advanced Power Measurement and Analysis
Differential PROBE; 200 MHZ DIFFERENTIAL HIGH VOLTAGE PROBE - Qty - #1
Probe: AC/DC Current; 30 Amp DC: DC TO 120 MHZ; - Qty - #1
POWER DESKEW/CALIBRATION FIXTURE - - Qty - #1

Oscilloscope
MSO Oscilloscope -5 Hardware upgrade -2

High Voltage Probe: 50 MHz: 50X/500X: 1.3 kV: Differential: BNC

Oscilloscope
MSO Oscilloscope -5 Hardware upgrade -3

Probe: AC/DC Current; 30 Amp DC: DC TO 120 MHZ;

Oscilloscope
MSO Oscilloscope -5 Hardware upgrade -4

Passive Probe: 500 MHz: 2X:

Oscilloscope
Multimeter 1

Resolution: 3.5 digits
Voltage : 600.0 mV - 600V AC and DC with (0. 1mV - 0.1 V) Resolution
Current : upto 10A DC & AC (11A overload for 30-seconds max)
Resistance : 400 Ω - 40 MΩ with (0.1 Ω - 0.01 MΩ) Resolution
Capacitance : 50nF - >1000 µF with (0.01 nF - 1uF) Resolution
Frequency : 50 Hz to 100kHz with (0.01 Hz - 0.01 kHz) Resolution

Multimeter
Multimeter 2

Resolution: 3.5 digits
Voltage : 600.0 mV - 600V AC and DC with (0. 1mV - 0.1 V) Resolution
Current : upto 10A DC & AC (20 A overload for 30-seconds max)
Resistance : 600 Ω - 40 MΩ with (0.1 Ω - 0.01 MΩ) Resolution
Capacitance : 1000 nF - >1000 µF with (1 nF - 1uF) Resolution
Frequency : 99.99 Hz to 50 kHz with (0.01 Hz - 0.01 kHz) Resolution

Multimeter
